Skylights Made to any Dimension
There are multiple ways custom skylights can be incorporated into a design across a range of finishes.
Our range of custom skylights can be installed into the following roof profiles:
- Concrete
- Colorbond pitched roof
- Colorbond low pitch roofs
- Pitched tile roofs

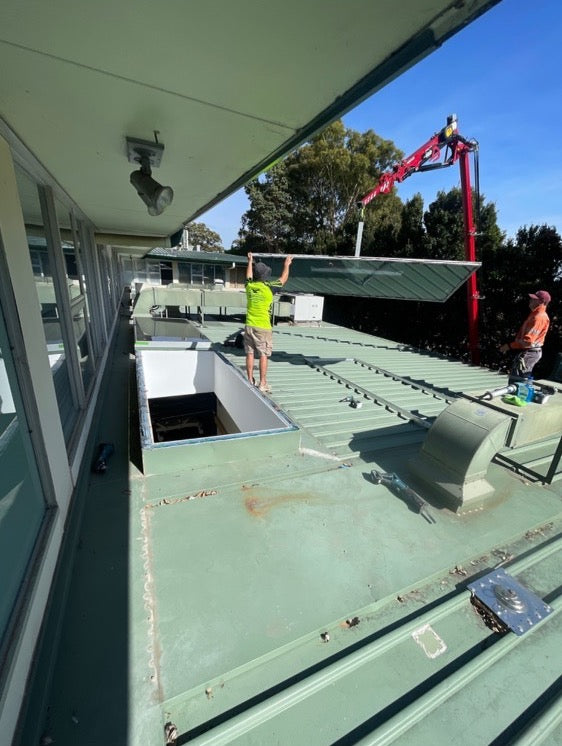

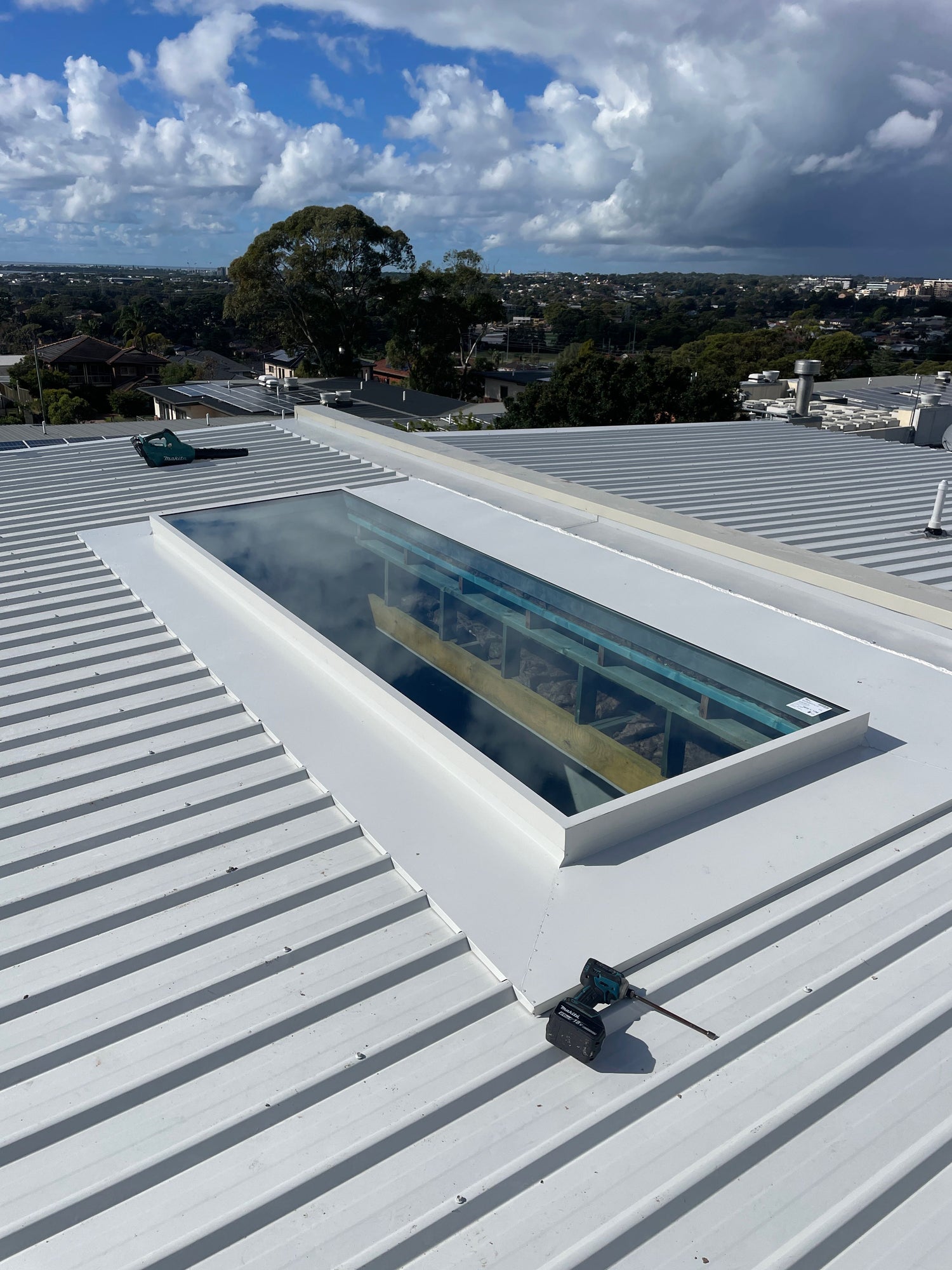

Low Pitch Colorbond Roof Installation
With low pitch roof designs being a current trend in residential construction, our curb mounted design allows the custom range to be installed onto basically any roof profile and installed on a minimum 1 degree pitch.

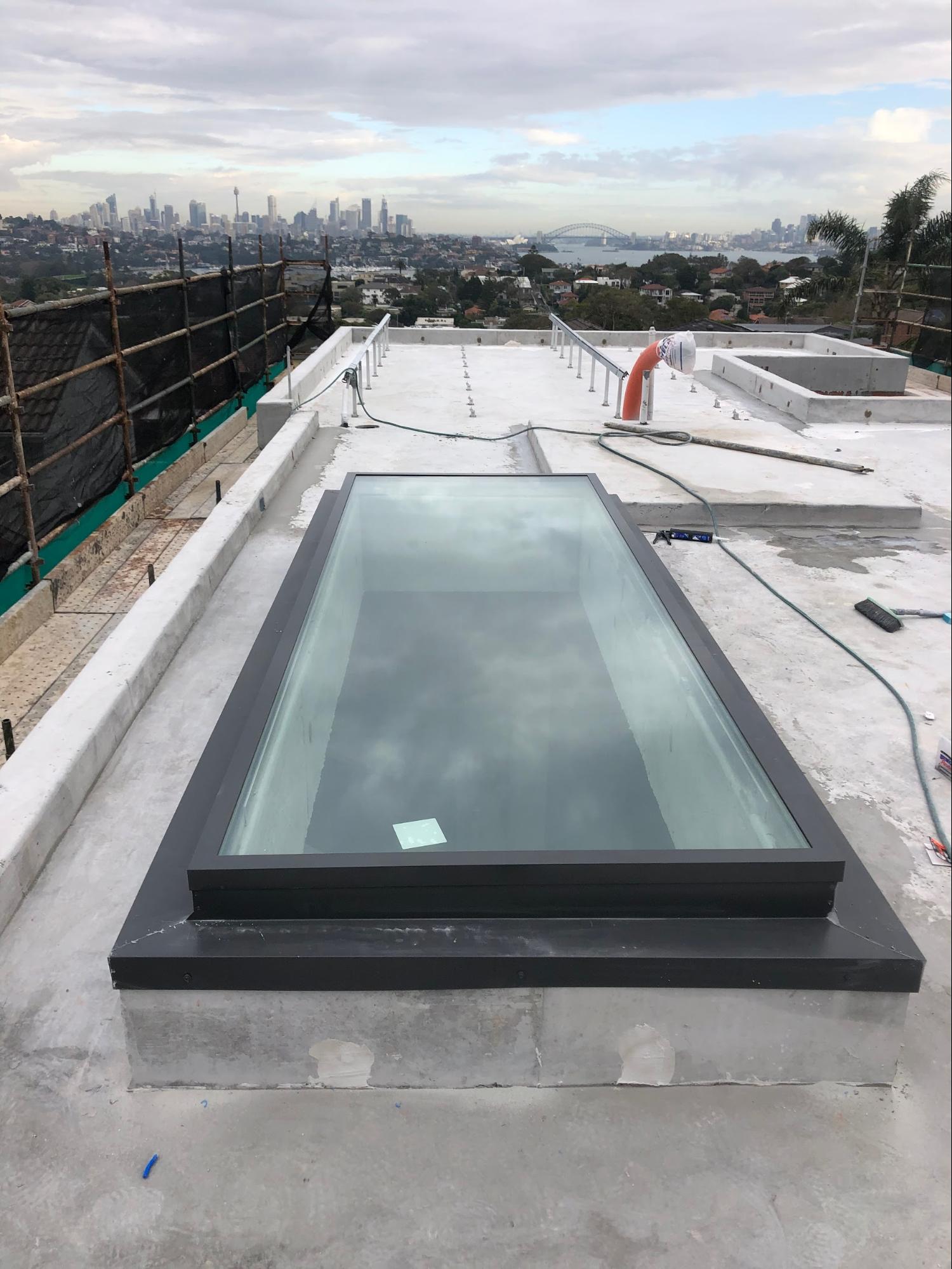

Concrete Roof Installation
Concrete hobs are a great example how custom skylights can fully leverage their made-to-measure capabilities, a level of precision and customisation that off-the-shelf skylights cannot attain.
-
Max length 4.2m
-
Single or double glazing
-
Maintenance trafficable
-
Welded Aluminium structural frame
-
Colorbond curb flashings

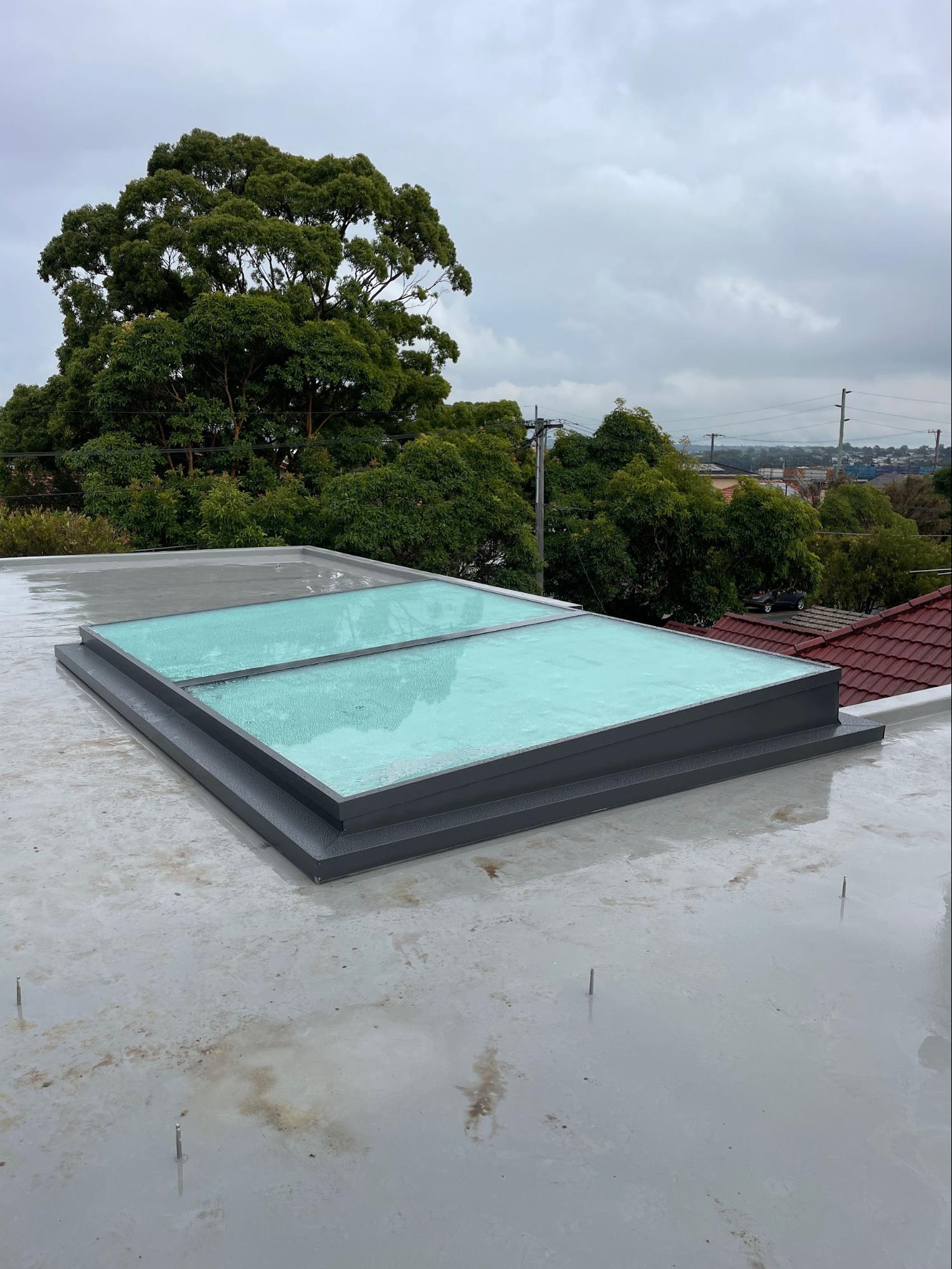

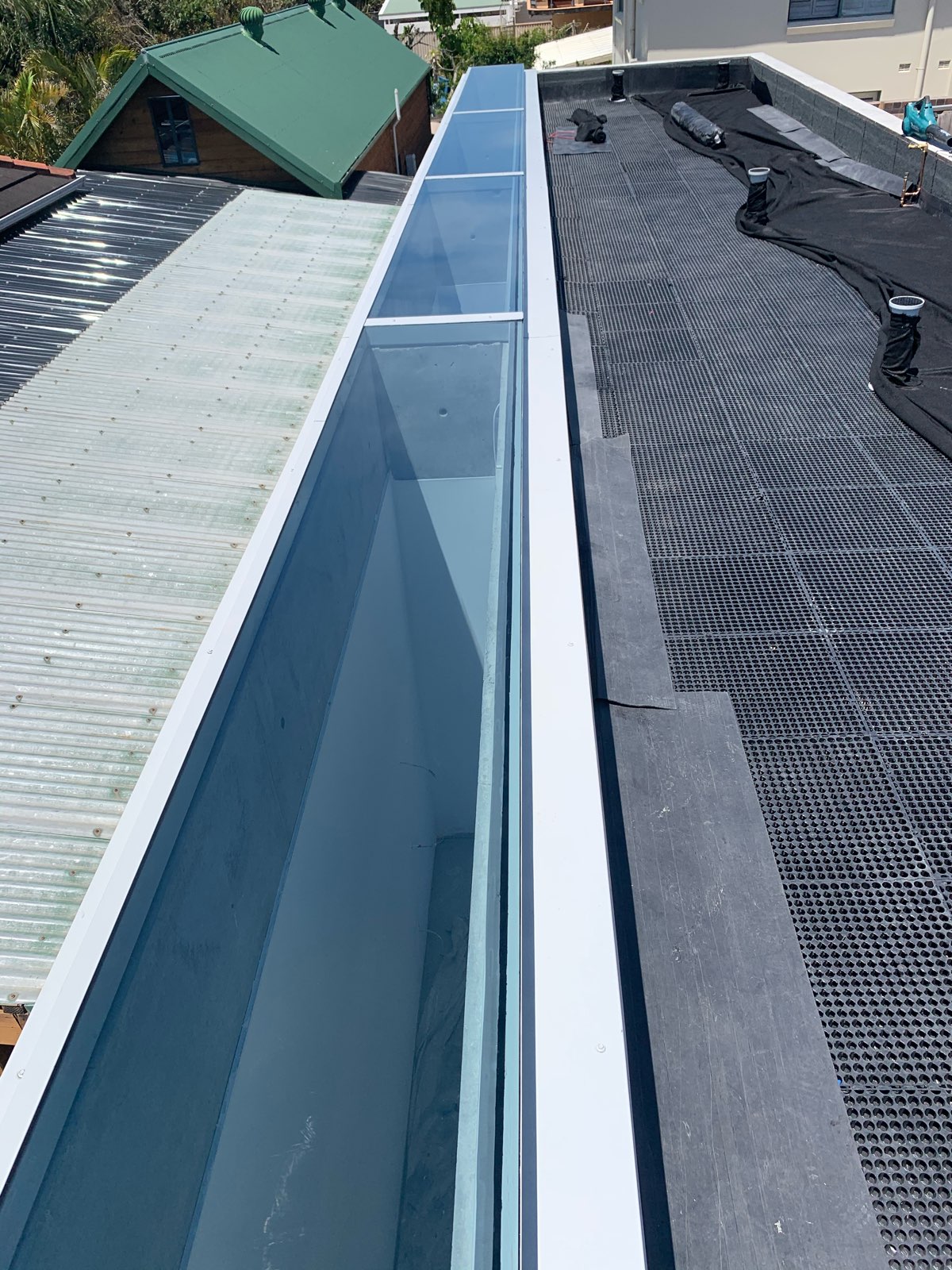

Custom Skylight Cluster - In Line
An in-line custom skylight cluster is a configuration of individual skylights that form one large skylight section. Typically used in various areas of the home, such as a living room or a kitchen, to introduce abundant natural light and create an aesthetically pleasing focal point within the interior.
-
Max length 4.2m
-
Single or double glazing
-
Maintenance trafficable
-
To support glass joints, an internal mullion is necessary
Oversized Custom Skylights
An In-line custom skylight cluster is a configuration of individual skylights that form one large skylight section. Typically used in various areas of the home, such as a living room or a kitchen, to introduce abundant natural light and create an aesthetically pleasing focal point within the interior.
-
Max length 4.2m
-
Single or double glazing
-
Maintenance trafficable
-
To support glass joints, an internal mullion is necessary
-
Engineering required
Detail and Size

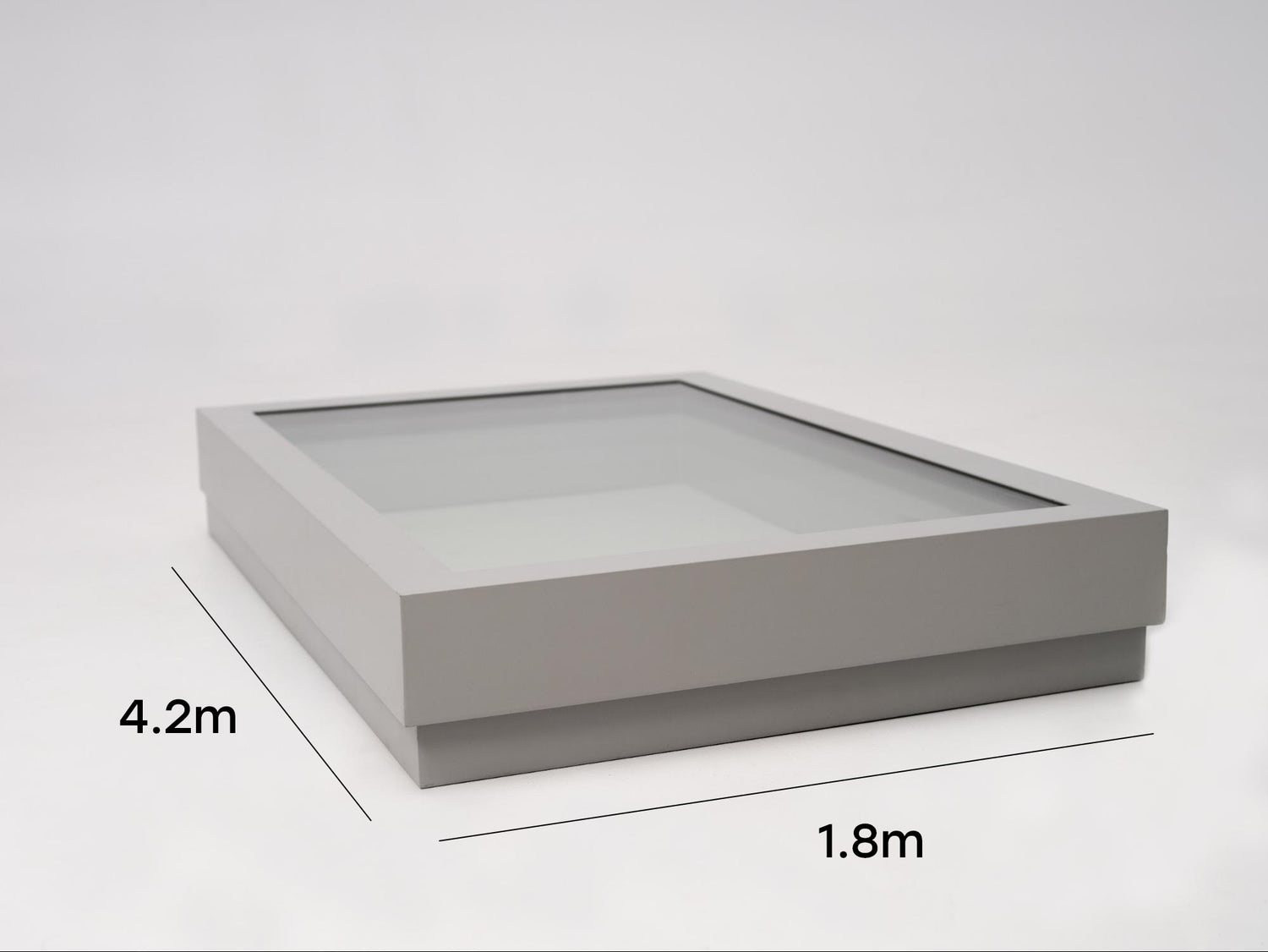

Maximum size of a single custom skylight
1.8m x 4.2m (subject to design and engineers details)

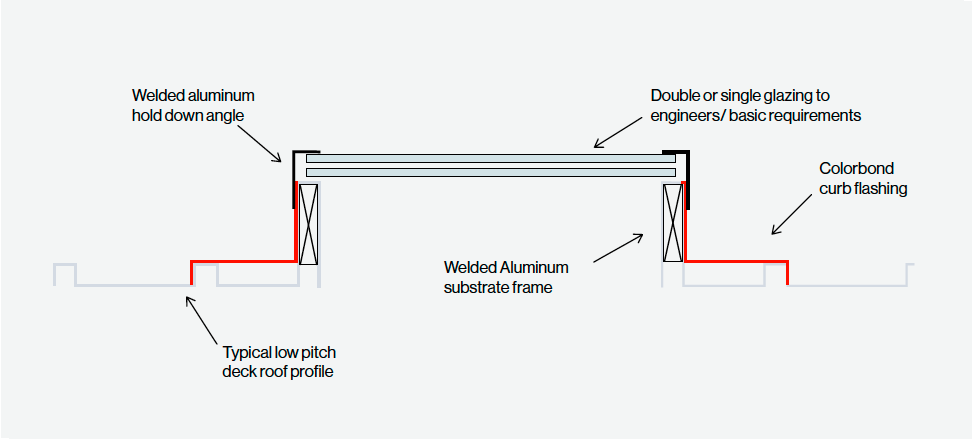

Skylight Detail - Colorbond Roof

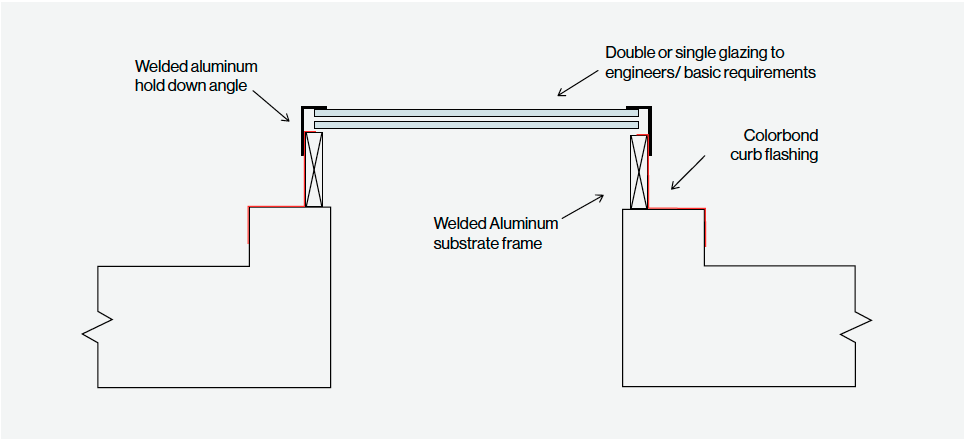

Skylight Detail - Concrete Hob
Installation Techniques
One of the complexities associated with custom skylights lies in the installation process. Often, the sheer size and weight of these skylights, typically ranging from 80 to 100 kilograms per square meter, necessitate the use of cranes to safely maneuver them into position. This installation method involves a skilled team of installers trained to handle glass of such dimensions, employing mobile cranes and specialized glass lifting equipment.

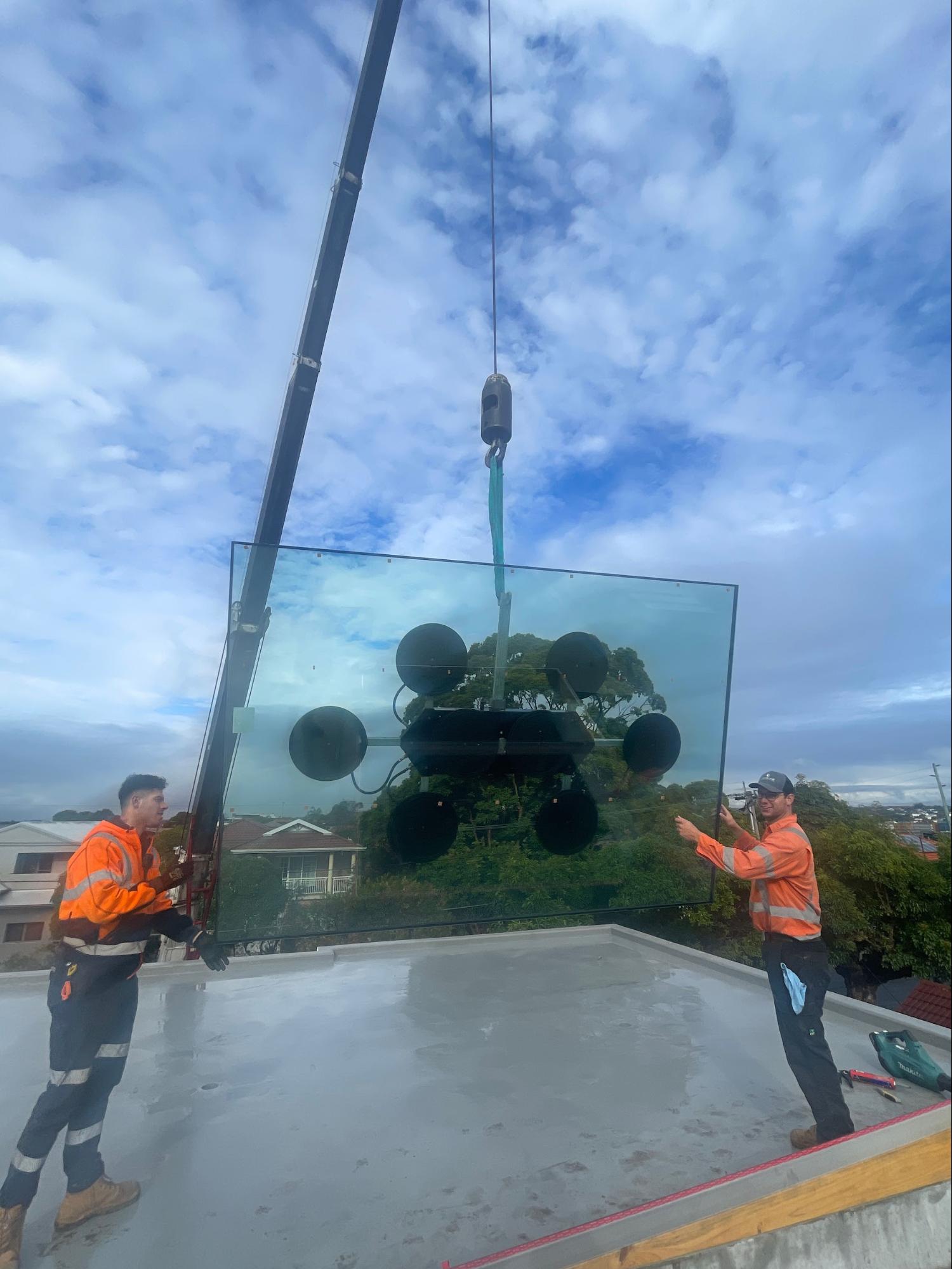

Our favored installation method involves the utilization of a hydraulic glass suction lifting apparatus on a mobile crane. This approach necessitates unobstructed access for a crane with a capacity ranging from 20 to 60 tons.

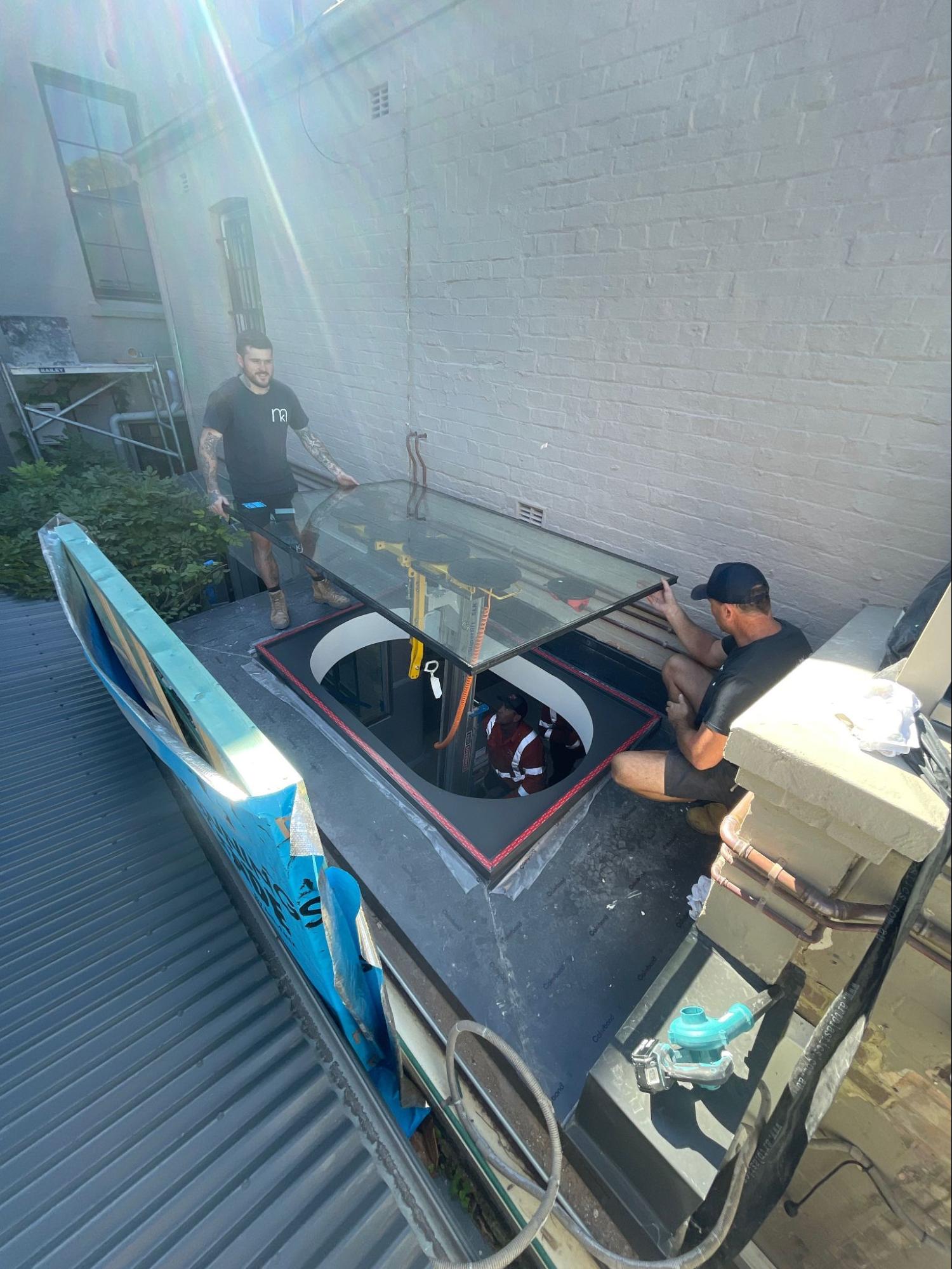

Inside out installation
We can perform the skylight installation from beneath the designated location, which becomes the preferred approach when top-down access is not feasible.

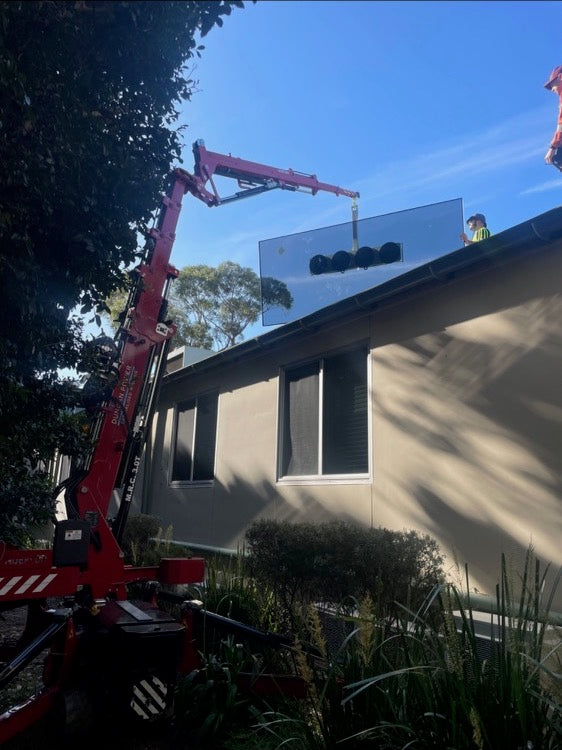

Tight Access - Spider Crane
Our mobile spider crane provides access to nearly any challenging, difficult-to-reach site. The spider crane boasts a remarkable reach of up to 16 meters vertically and 8 meters horizontally, easily maneuvering through a 900mm clearance.
